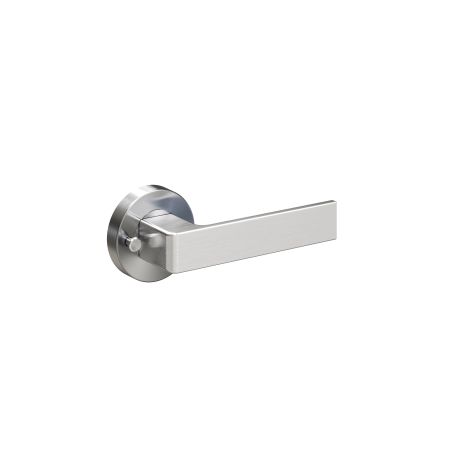

Form Series with QuickFix Angelo Passage Lever Set
SRL71ANSS
Finish:
Make an impact with the elegant design and durable construction of the Schlage Angelo lever. Suitable for a modern interior style this European style lever is non handed and features our QuickFix technology for faster door hardware installation. Constructed of quality components with solid stainless steel levers and outer roses (US304 grade), the Form Series is suitable for use with the Schlage tubular latches, ME series mortice locks and our Legge 991 Series mortice locks.
Collection Form Series ?
Function Passage ?
Locking/Non-Locking Non-Locking ?
Bore hole (mm) 25 ?
Door thickness (mm) 30-50 ?
Handing Universal ?
Warranty ?
- Through-bolts provide secure fixing, concealed by a round rose cover for aesthetic appeal
- Features QuickFix technology - install door lever in under 30 seconds after installation of the latch and strike
- Constructed of quality components with US 304-grade solid stainless steel levers and outer roses
- Suitable for use on approved fire core door assemblies when used with fire rated mortice locks or latches
- Square rose cover also available, to transform your lever into a modern square lever design
- Style Name: Angelo
- Application: Internal
- Backset (mm): 60
- Bore Hole (mm): 25
- Edge Bore (mm): 25
- Lever Length (mm): 126
- Locking: Non-Locking
- Product dimensions - depth, height, width (mm): 205, 72, 172
About the collection
Beautifully designed down to the last detail, the Schlage Form Series is manufactured from high quality stainless steel for high performance and increased durability for residential homes and apartments. This contemporary lever range offers a modern look with minimal styling for maximum impact.
Matching products
At Schlage, we offer a lot of complementary products to simplify your door hardware selections. Browse our range of door levers, knobs, pull handles, cavity sets and smart locks designed to seamlessly work together and elevate your design project.
Installation Template
Brochure
Cutsheet
A-Z Glossary
Having trouble telling a difference between a latch and a strike plate? With the right support, the world of door hardware can be easy! Read our glossary to get a better grasp of the key industry terms.
READ MORECaring for your door hardware
Door hardware is easy to clean. Give your levers and knobs, including roses and plates, a gentle wipe every two months with a soft, damp cloth. A solution of soap and water could also be used to remove dirt from knobs, roses, but make sure the liquid doesn’t go into cylinders. Avoid using acidic or abrasive substances which may contain solvents, i.e. cleaning products, as they may cause a deterioration of the finish.
Click here to find out more about door hardware maintenance.
Use soapy water
Use a soft damp cloth
